Center Roof Frame Trim Panel, Removing And Installing: Removing

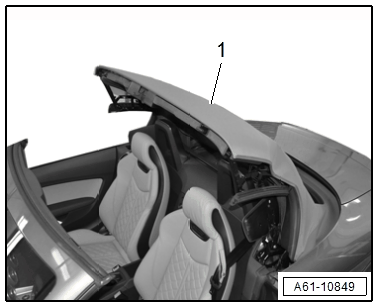

-- Bring the convertible top -1- into position shown.

Courtesy of AUDI OF AMERICA, LLC

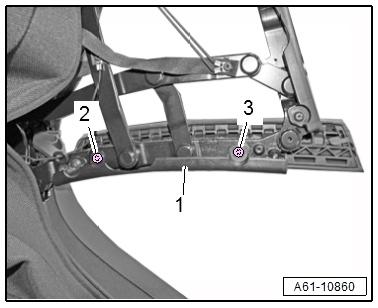

-- Remove the bolts -2 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the trim panel -1-.

• When removing the trim panel pay attention to the quantity and installation location of the spacer(s).
