Rear Convertible Top Seal, Removing And Installing: Removing

-- Remove the rear roof frame trim. Refer to REAR ROOF FRAME TRIM PANEL, REMOVING AND INSTALLING .

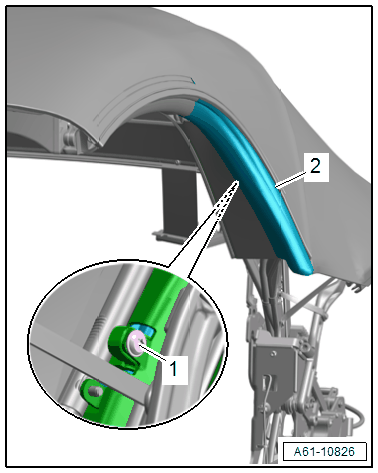

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

TIP:

In the illustration only one of three bolts to be removed is shown.

-- Remove the convertible top seal with retaining strip -2-.

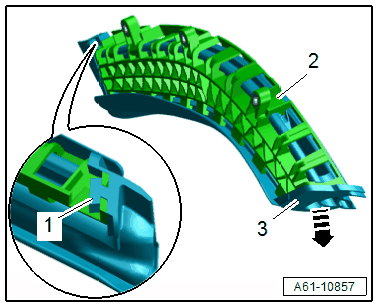

-- Remove the convertible top seal -3- from the retaining strip -2- in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the tab -1- on the retaining strip.
