Rear Convertible Top Seal, Removing And Installing: Installing
Install in reverse order of removal and note the following:
- Replace the self-locking bolts.
-- Use a thread tap to clean any locking fluid residue out of all the threaded holes that self-locking screws were used in.

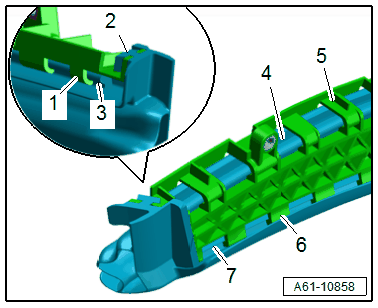

-- Insert the tab -2- correctly in the mount.
-- The tabs -3, 4 and 7- must be inserted completely and correctly into the guides -1, 5 and 6-.
-- When installing the rear convertible top seal make sure that all the convertible top seals are routed evenly. If an alignment of the convertible top seal is required it should be based on the rear convertible top seal.
