Front Convertible Top Seal, Removing And Installing: Removing

-- Bring the convertible top -1- into position shown.

Courtesy of AUDI OF AMERICA, LLC

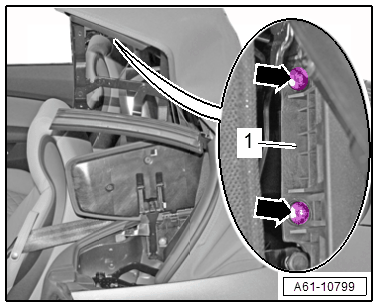

-- Mark the bolts -arrows- on the convertible top seal retaining strip for reinstallation and remove.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the convertible top seal with the retaining strip -1-.

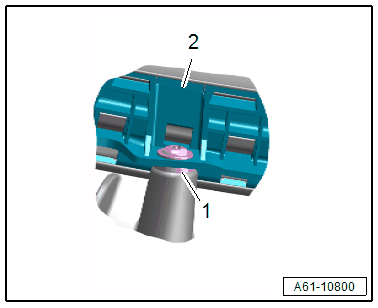

• When removing the retaining strip -2- pay attention to the quantity and installation location of the washers(s) -1-.

  Courtesy of AUDI OF AMERICA, LLC

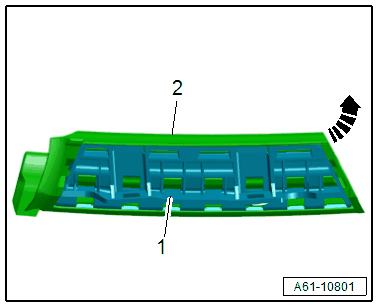

-- Remove the convertible top seal -2- from the retaining strip -1- starting at the outside in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC
