Center Convertible Top Seal, Removing And Installing: Removing

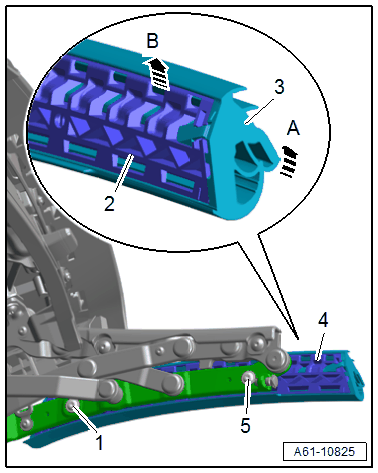

-- Bring the convertible top -1- into position shown.
-- Mark the bolts -1 and 5- on the convertible top seal retaining strip for reinstallation and remove.
-- Remove the convertible top seal with the retaining strip -4-.
- When removing the retaining strip pay attention to the quantity and installation location of the shim(s).
-- Remove the convertible top seal -3- from the retaining strip -2- in the direction of -arrow A-.
-- Remove the retaining strip -2- from the convertible top seal -3- -arrow B-.
