Center Convertible Top Seal, Removing And Installing: Installing

Install in reverse order of removal and note the following:

-- Make sure that the guides for the convertible top seal are properly seated in the mounts on the retaining strip.

-- When installing the center convertible top seal make sure that all the convertible top seals are routed evenly. Install the same quantity of shim(s) at the identical location. If an alignment of the convertible top seal is required it should be based on the rear convertible top seal.

Check the position of the door window to the seal and adjust if necessary:

-- For the side adjustment, slide the shims -3- between the guide rail and the convertible top arm -2- according to the door window.

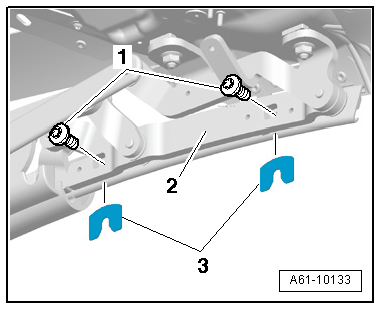

Fig 1: Slide In Shims -3- Between Guide Rails And Convertible Top Guide -2- Appropriate To Door Window

Courtesy of AUDI OF AMERICA, LLC
