Convertible Top Compartment Seal, Removing And Installing: Removing

-- Open the engine compartment lid.

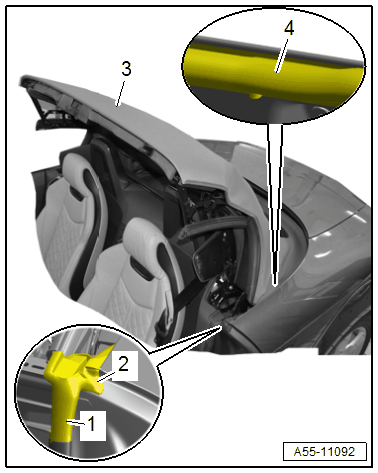

-- Bring the convertible top -3- into the position shown.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the retaining studs -2-.

-- Remove the convertible top compartment seal -1- from the B-pillar.

-- Remove the convertible top compartment seal -4- from the convertible top compartment body seam.
