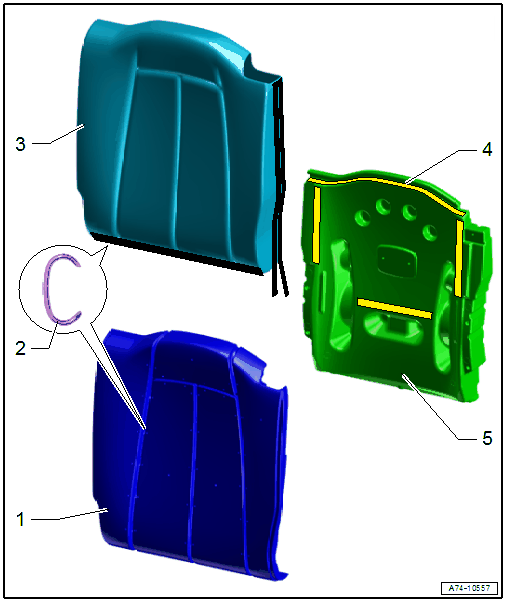

Overview - Rear Seat Backrest Cover And Cushion
- Cushion
- Is additionally secured with two-sided adhesive strip on the backrest shell
- Covers and Cushions, Removing and installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, REAR SEAT BACKREST .
- Allocation.
- Upholstery Clip
- Replace after removing.
- Only cover with upholstery clip
- For securing the cover to the cushion
- Install at the same location with :VAG1634 .
- Cover
Vehicles with:
- Fabric
- Leather
- Covers and Cushions, Removing and installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, REAR SEAT BACKREST .
- Allocation.
- Check that there are no folds after installing
- Adhesive Strips
- Allocation.
- Backrest Shell
- Allocation.
