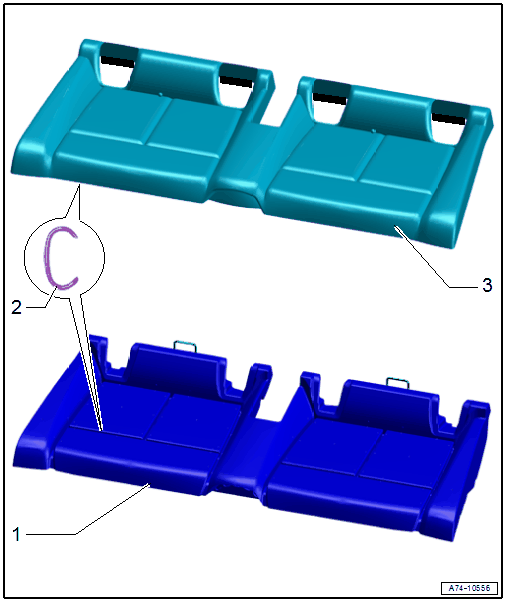

Overview - Cover And Cushion, Sport Bench Seat

Courtesy of AUDI OF AMERICA, LLC

1. Cushion
   • Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
   • Allocation.
2. Upholstery Clip
   • Replace after removing
   • For securing the cover to the cushion
   • Install at the same location with Upholstery Clip Pliers:VAG1634  .
3. Cover
   • Vehicles with:
     • Fabric
     • Leather
   • Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
   • Allocation.
   • Check that there are no folds after installing
