Cover And Cushion, Separating, Bench Seat: Removing

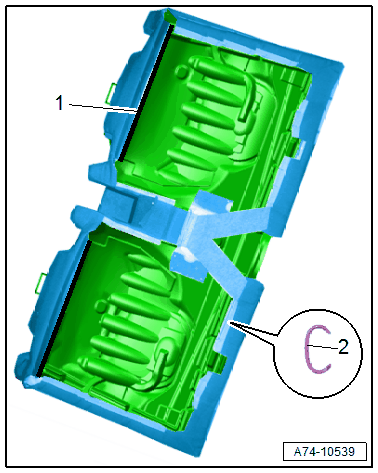

GWWA74-10539Courtesy of AUDI OF AMERICA, LLC

-- Remove the bench seat / single seats. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

CAUTION:

There is a risk of damaging the cover.

  • Do not pull on the cover. The cover can rip.

-- Disengage the molding -1- of seat cover on the seat frame.

-- Cut the cover upholstery clips -2- all the way around the seat frame with pliers.

-- Pull off cover from the cushion as far as possible and cut the upholstery clips using pliers.

-- Remove the cover from the cushion.
