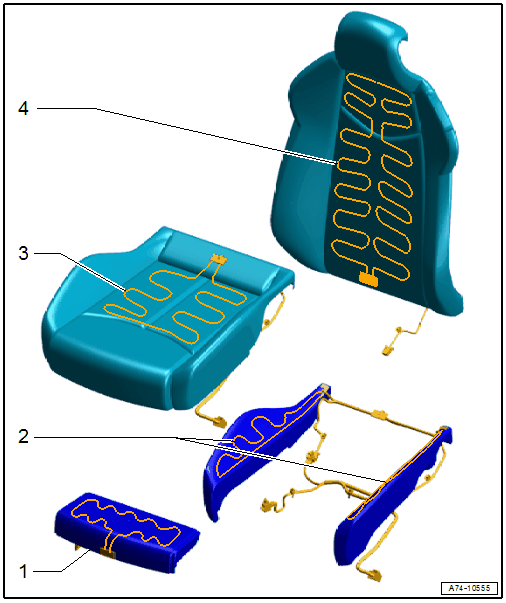

Overview - Seat Heating Element, Super Sport Seat

Courtesy of AUDI OF AMERICA, LLC

1. Heated Driver Seat Extension -Z37-
   • Front passenger side: Heated Front Passenger Seat Extension -Z38-
   • Removing and installing. Refer to SEAT DEPTH ADJUSTER SEAT CUSHION, REMOVING AND INSTALLING .
2. Driver Seat Left Bolster Heating Element -Z76- /Driver Seat Right Bolster Heating Element -Z77-
   • Front passenger side: Front Passenger Seat Left Bolster Heating Element -Z80- /Front Passenger Seat Right Bolster Heating Element -Z81-
   • The heating element is glued to the seat bolster cushion
   • Removing and installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
3. Driver Seat Heating Element -Z6-
   • Passenger side: Front Passenger Seat Heating Element -Z8-
   • Heating element sewn into seat cover; if faulty, replace the seat cover. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
4. Driver Backrest Heating Element -Z7-
   • Passenger side: Front Passenger Backrest Heating Element -Z9-
   • Heating element sewn into backrest cover; if faulty, replace backrest cover. Refer to BACKREST COVER AND CUSHION, SEPARATING .
