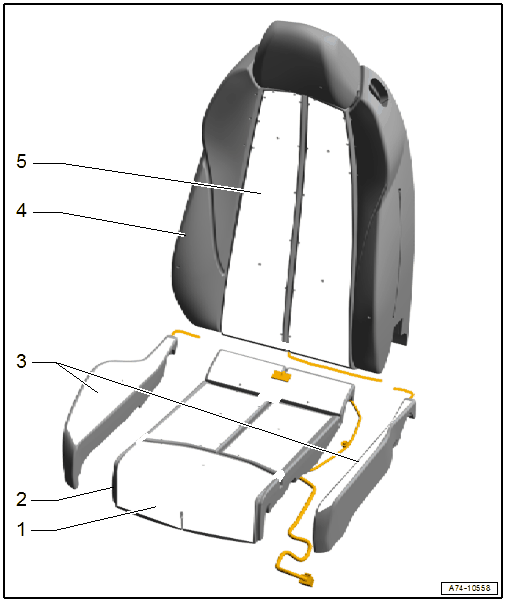

Overview - Seat Heating Element, Sport Seat

Courtesy of AUDI OF AMERICA, LLC

Driver Seat Heating Element -Z6-
- Passenger side: Front Passenger Seat Heating Element -Z8-
- Allocation.
- Replacing. Refer to DRIVER AND FRONT PASSENGER SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING .
Seat Cushion
- When replacing, apply a new heating element. Refer to DRIVER AND FRONT PASSENGER SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING .
Driver Seat Left Bolster Heating Element -Z76- /Driver Seat Right Bolster Heating Element -Z77-
- Front passenger side: Front Passenger Seat Left Bolster Heating Element -Z80- /Front Passenger Seat Right Bolster Heating Element -Z81-
- The heating element is glued to the seat bolster cushion
- Removing and installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
Backrest Cushion
- When replacing, apply a new heating element. Refer to DRIVER AND FRONT PASSENGER BACKREST HEATING ELEMENT -Z7- / -Z9-, REMOVING AND INSTALLING .
Driver Backrest Heating Element -Z7-
- Passenger side: Front Passenger Backrest Heating Element -Z9-
- Allocation.
- Replacing. Refer to DRIVER AND FRONT PASSENGER BACKREST HEATING ELEMENT -Z7- / -Z9-, REMOVING AND INSTALLING .
