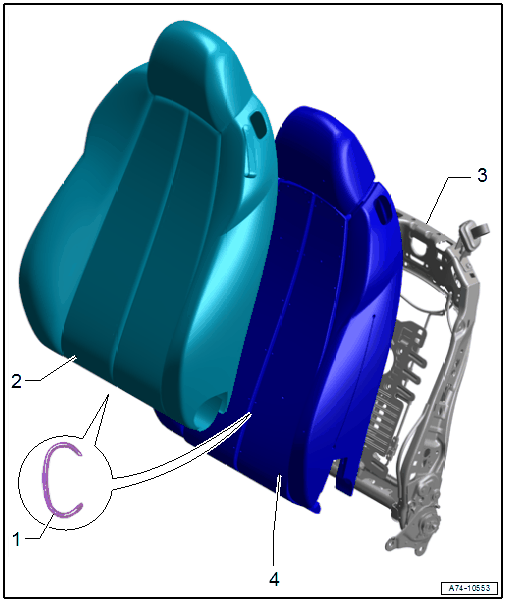

Overview - Backrest Cover And Cushion, Sport Seat

Courtesy of AUDI OF AMERICA, LLC

1. Upholstery Clip
   • Replace after removing
   • For securing the cover to the cushion
   • Install at the same location with Upholstery Clip Pliers:VAG1634  .
2. Cover
   • Vehicles with:
     • Fabric
     • Leather
   • Allocation.
   • Covers and Cushions, Removing and installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, SPORT SEAT .
   • Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
   • Check that there are no folds after installing
3. Backrest Frame
4. Cushion
   • Allocation.
   • Covers and Cushions, Removing and installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, SPORT SEAT .
   • Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
