Backrest Cover And Cushion, Separating: Removing

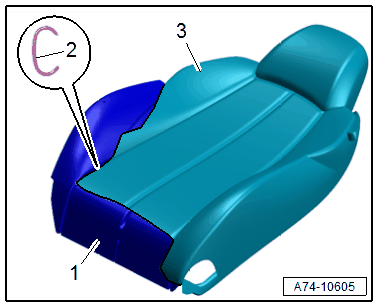

GWWA74-10605Courtesy of AUDI OF AMERICA, LLC

-- Remove the backrest seat cover and cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .

-- Pull off the cover -3- from the cushion -1- as far as possible and cut upholstery clips -2- using pliers.

NOTE:

The Sport seat is illustrated.
