Backrest Cover And Cushion, Removing And Installing, Super Sport Seat: Removing

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Fasten the front seat on the :VAS6136  . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the tunnel-side seat side trim. Refer to SEAT SIDE TRIM ON TUNNEL SIDE, REMOVING AND INSTALLING .

-- Remove the seat side trim on side sill side. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .

-- Remove the backrest cover and side trim. Refer to BACKREST COVER, REMOVING AND INSTALLING, SUPER-SPORT SEAT .

-- Remove the front side airbag. Refer to FRONT SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

-- Free up the wiring harness for the side airbag if necessary for the backrest heating from the seat pan. Refer to FRONT SEAT WIRE ROUTING .

-- Remove the front backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING .

-- Equipped on some models: Unclip the upper cabin heating vent -1- using the :3409  in direction of -arrows- and remove it.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the clips -arrows- on the backrest frame with the :80-200  .

Courtesy of AUDI OF AMERICA, LLC

-- Detach the lower molding -1- from the backrest frame.

-- Disengage the molding -2- on the bracket on the backrest frame.

-- Remove the clips -arrows- on the side bolster with the :80-200  .

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the clamping strip -1- for the cover from the headrest.

-- Disengage the cover and cushion -1- on both sides from the side bolster hook -2-.

Courtesy of AUDI OF AMERICA, LLC

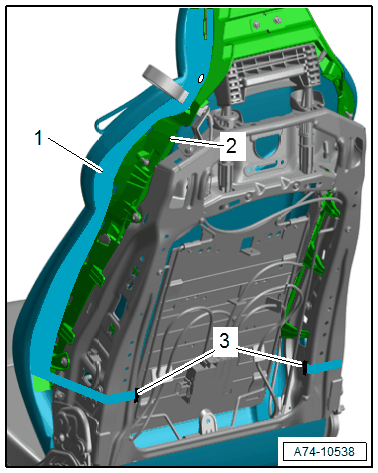

-- Disengage the cover tab -3- from the backrest frame.

-- Loosen the cover -1- with cushion -2- from the backrest frame and remove carefully under the backrest forward in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cushion and cover from the backrest frame, if necessary guide the wiring harness for the backrest heating.
