Overview - Seat Pan, Seat Height Adjustment

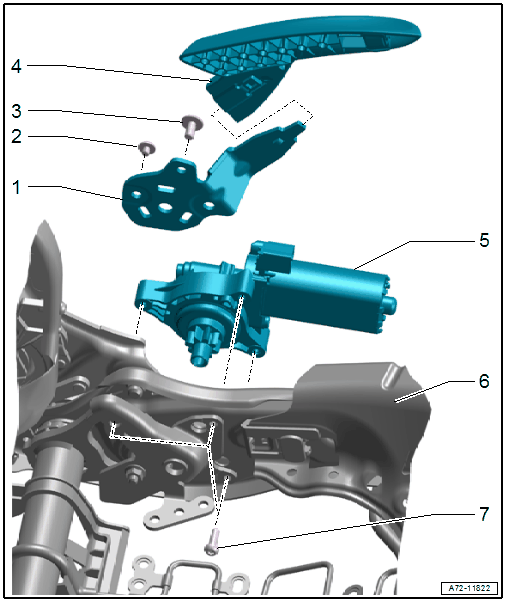

Fig 1: Exploded View Of Seat Pan, Seat Height Adjustment

Courtesy of AUDI OF AMERICA, LLC

Seat Height Adjustment Lever
- Manual front seat
- Removing and installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
- With the tab for locking the seat height adjustment handle.
Bolts
- 5 Nm
- Note the different bolt length -item 3-
Bolts
- 5 Nm
- Note the different bolt lengths -item 2-
Seat Height Adjustment Handle
- Manual front seat
- Removing and installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
- The tabs must engage in the notch on the lever.
Driver Seat Height Adjustment Motor -V245-
- Front passenger side: Front Passenger Seat Height Adjustment Motor -V246-
- Power front seat
- Not available separately; replace the seat pan upper frame if faulty. Refer to SEAT PAN, REMOVING AND INSTALLING, POWER FRONT SEAT .
Seat Pan
- Allocation. Refer to the Parts Information.
Bolt
- 7.5 Nm
- Quantity: 3
