Overview - Seat Pan, Seat Angle Adjuster

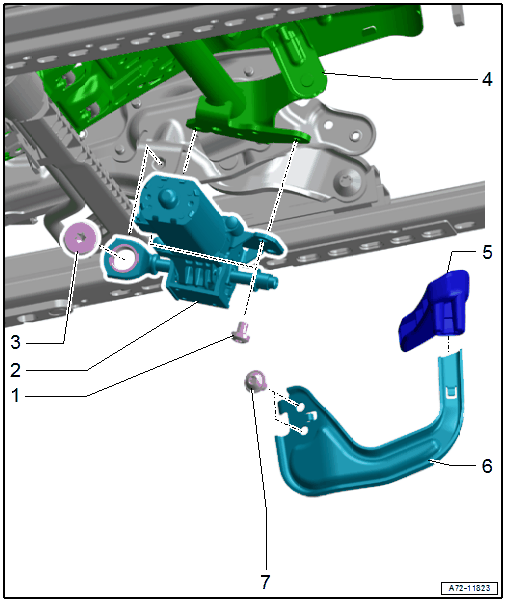

Fig 1: Exploded View Of Seat Pan, Seat Angle Adjuster

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 10 Nm
- Replace after removing
- Quantity: 2
- Self-locking
- Threaded holes for the bolts must be cleaned, for example, with a thread tap
Driver Seat Angle Adjustment Motor -V243-
- Front passenger side: Front Passenger Seat Angle Adjustment Motor -V224-
- Power front seat
- Removing and installing. Refer to SEAT ANGLE ADJUSTER, REMOVING AND INSTALLING .
Bolt
- 20 Nm
- Replace after removing
- Self-locking
- Clean the threaded hole for the bolt with for example a thread tap.
Seat Pan
- Allocation. Refer to the Parts Information.
Seat Angle Adjuster Handle
- Manual front seat
- Removing and installing. Refer to SEAT ANGLE ADJUSTMENT HANDLE/LEVER, REMOVING AND INSTALLING .
Seat Angle Adjuster Lever
- Manual front seat
- Removing and installing. Refer to SEAT ANGLE ADJUSTMENT HANDLE/LEVER, REMOVING AND INSTALLING .
- With the tab for locking the seat height adjustment handle.
Bolt
- 5 Nm
- Quantity: 2
