Lumbar Support Adjustment Motors -V125- / -V126- / -V129- / -V130-, Removing And Installing: Removing
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS FOR PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker pin, for example.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Fasten the front seat on the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Remove the backrest seat cover and cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .

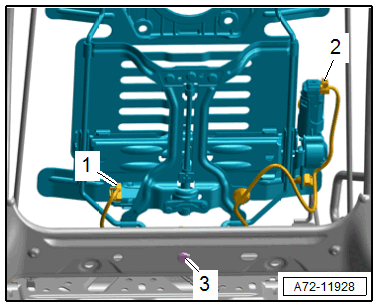

-- Detach the connectors -1 and 2- at the lumbar support forward/back and height adjustment motors.
-- Cut through the cable tie and free up the wiring harness on the lumbar support.
WARNING:
Risk of eye injury.
- Wear protective eyewear!
-- Drill out the rivet -3-.
-- Cut through the cable tie for the backrest release cable on the lumbar support.
-- Move the lower lumbar support -1- forward, pivot it out of the backrest frame, disengage it from the backrest frame -2- -arrows- and remove it.
