Left Head Area Heater Fan -V450- /Right Head Area Heater Fan -V451-: Removing

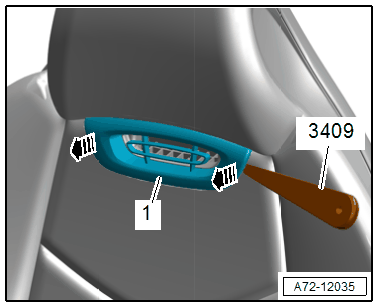

-- Unclip the upper cabin heating vent -1- using the :3409  in direction of -arrows- and remove it.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, SUPER-SPORT SEAT .

Fig 1: Upper Cabin Heating Roadster, Equipment Level

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2-.

-- Disengage the blower -1- for the upper cabin heating on the backrest frame -arrow- and remove downward.

-- To do so push the cushion forward and remove the upper cabin heating blower with air duct downward between the cushion and the backrest frame.

-- Disconnect the connectors, to do this press the release.
