Driver Seat Lumbar Support Adjustment Switch -E176- /Front Passenger Seat Lumbar Support Adjustment Switch -E177-, REMOVING AND INSTALLING

Special tools and workshop equipment required

• Trim Removal Wedge:3409

Version 1 Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the seat side trim on side sill side. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .

-- Remove the bolts -1- and switch -2-.

Version 2 Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the seat side trim on side sill side. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .

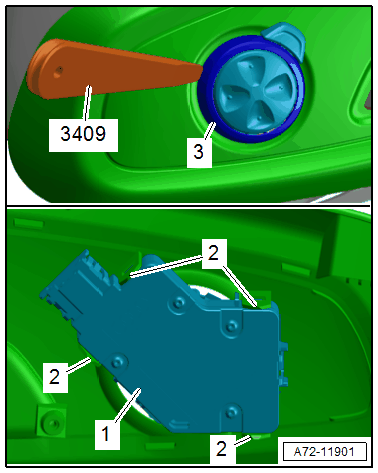

-- Unclip the trim -3- with the :3409  carefully from the switch.

-- Release the catches -2- and disengage the switch -1- on the trim and remove.

Installing

Install in reverse order of removal.
