Overview - Convertible Top Frame Flap, Repair Kit

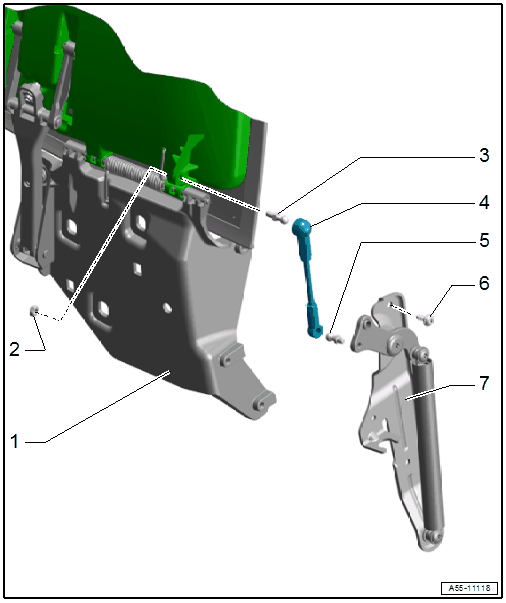

GWWA55-11118Courtesy of AUDI OF AMERICA, LLC
  1. Convertible Top Frame Flap
  2. Nut
    • 2 Nm
  3. Upper Ball Stud
    • 2 Nm
  4. Release Lever

    For operating the convertible top frame flap

  5. Lower Ball Stud
    • 3 Nm
  6. Bolt
    • 2 Nm
    • Quantity: 3
  7. Actuator
