Convertible Top Frame Flap, Adjusting

Special tools and workshop equipment required

• Gauge - Gap Adjustment:3371

Procedure

• Gap dimensions. Refer to CONVERTIBLE TOP FRAME FLAP, GAP DIMENSIONS .

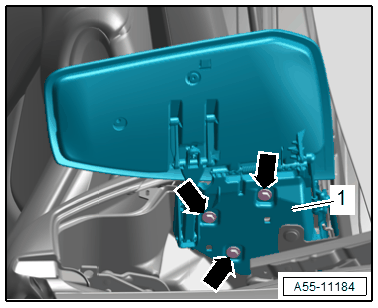

Height and Length Adjustment at the Hinge:

-- Loosen the bolts -arrows-.

-- Align the flap -1- in height and length.

-- Tighten the bolts.

Courtesy of AUDI OF AMERICA, LLC

Side and Length Adjustment to the Trim Panel Baseplate:

-- Loosen the bolts -arrows- on the baseplate -1-.

-- Align the baseplate side- and lengthwise.

-- Tighten the bolts.

Courtesy of AUDI OF AMERICA, LLC

Tightening Specifications

• Refer to Figure
• Refer to OVERVIEW - CONVERTIBLE TOP FRAME FLAP .
