Convertible Top Frame Flap Trim Panel, Removing And Installing: Removing

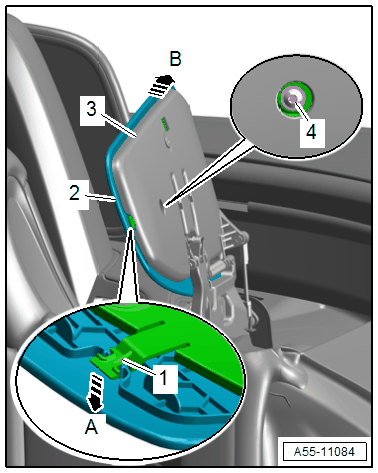

-- Press the actuator rod ball socket -3- out of the flap -2- mount -1-.
- The convertible top frame flap opens by the force of the spring.
-- Remove the bolt -4-.
-- Release the retainer -1- in the opening between the trim panel -2- and the flap -3- using a screwdriver in direction of -arrow A-.
-- At the same time, slide the trim panel in the direction of travel toward the rear in direction of -arrow B- and remove.
