Convertible Top Frame Flap Trim Panel, Removing And Installing: Installing

Install in reverse order of removal and note the following:

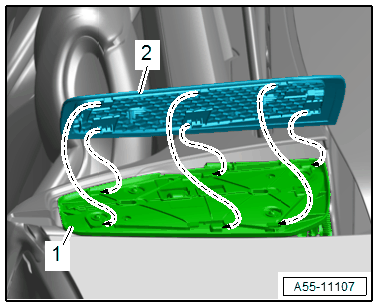

-- The guides on the baseplate -2- must be positioned behind the mounts when placing on the flap -1- in direction of -arrows- as illustrated.

-- Slide the trim forward until the clips audibly engage.

• The trim panel must sit correctly all around the flap.
