Convertible Top Frame Flap BASEPLATE, Removing And Installing: Removing
-- Remove the convertible top frame flap trim panel. Refer to CONVERTIBLE TOP FRAME FLAP TRIM PANEL, REMOVING AND INSTALLING .

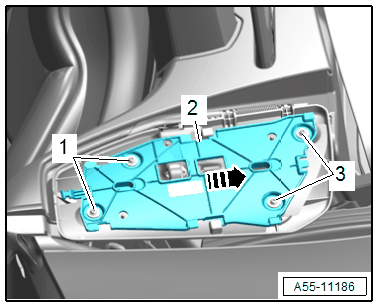

-- Remove the bolts -1 and 3-.
-- Slide the baseplate -2- toward the rear in direction of -arrow B- and remove.
