Water Drain Hose, Removing And Installing: Removing

-- Remove the convertible top. Refer to CONVERTIBLE TOP, REMOVING AND INSTALLING .

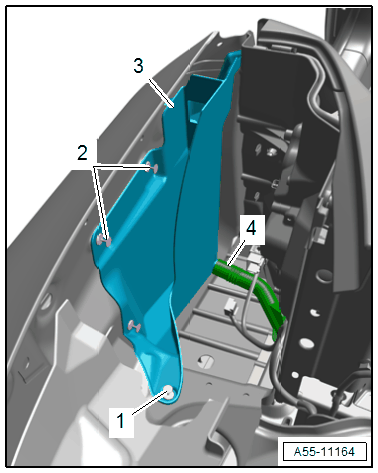

-- Remove the water drain hose -4- at the water drip tray -3-.

-- Remove the rear panel trim panel. Refer to COMPONENT LOCATION OVERVIEW - VEHICLE INTERIOR TRIM PANELS .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear bulkhead plate. Refer to the appropriate service information .

-- Remove the water drain hose -2- from the body -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the water drain hose from the convertible top compartment.
