Height, Adjusting Using Adjusting Buffer

Special tools and workshop equipment required

• Adjustment Gauge:3371

• Adjustment dimensions. Refer to REAR LID, ADJUSTING .

Procedure

-- Install the adjusting screw -2- with the protective cap -1- all the way into the adjusting buffer -3- before adjusting the lid.

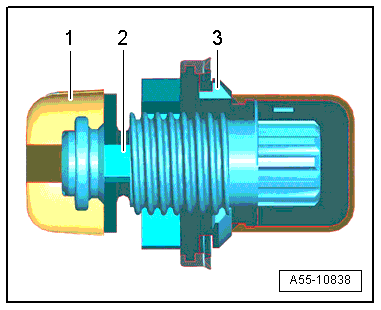

Fig 1: Adjusting Screw, Adjusting Buffer And Cap

Courtesy of AUDI OF AMERICA, LLC

-- Remove the adjusting screw -2- just enough until the cap -1- makes contact with the stop on the body side with light pretension when the rear lid is closed.

-- Check if the lid is without play and in a flush position by pressing or pulling at the side edges of the engine compartment lid.

-- Repeat the adjustment if necessary.
