Spoiler, Adjusting

Procedure

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

-- Extend the spoiler. Refer to the Owner's Literature.

-- Unclip the mount -1- for the water drain in direction of -arrows- and push through downward.

Courtesy of AUDI OF AMERICA, LLC

-- Lower the spoiler.

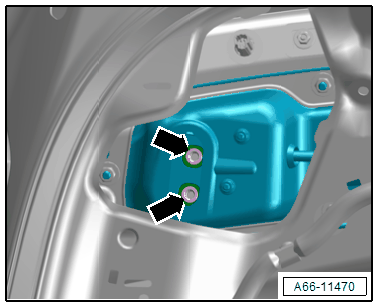

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

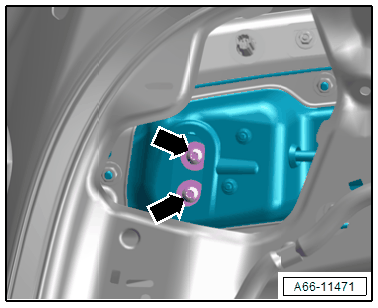

-- Adjust the adjusting screws -arrows- accordingly to adjust the height of the spoiler.

Courtesy of AUDI OF AMERICA, LLC

-- Align the spoiler in the installation opening for the side adjustment.

-- Tighten the bolts -arrows- by hand.

-- Check the gap dimension again.

-- Raise the spoiler.

-- Tighten the spoiler screws. Refer to Figure.

Courtesy of AUDI OF AMERICA, LLC
