Bumper Cover Lower Section, Removing And Installing: Removing

GWWA63-11008Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

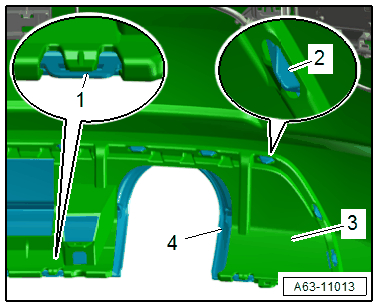

-- Release the catches -1 and 2- and remove the lower section -3- from the bumper cover -4-.

GWWA63-11013Courtesy of AUDI OF AMERICA, LLC
