Front Spoiler Lower Section, Removing And Installing: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the bumper cover end plate. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .

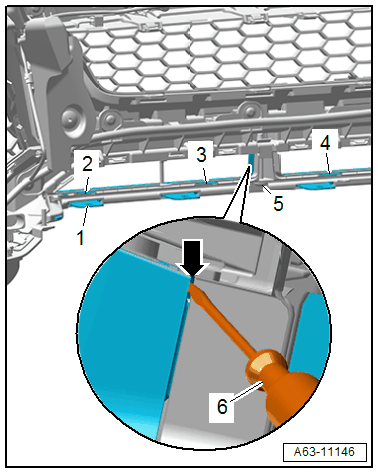

-- Remove the bolts -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -2, 3 and 4-.

-- Using a screwdriver -6- release the catch forward from the recess -arrow-.

-- Remove the spoiler lower section -1- from the bumper cover.
