Trailer Hitch Socket, Removing And Installing - Version 2: Installing

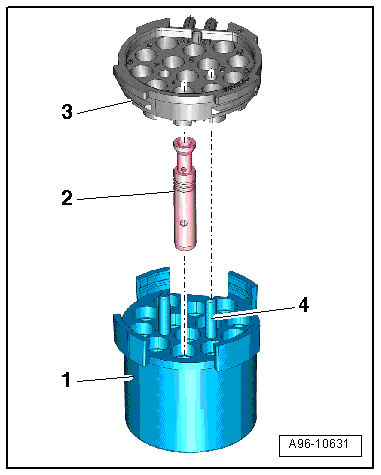

Fig 1: Identifying Retainer -1-, Contacts -2-, Multiple Connector -3- And Guide Pins -4-

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- The retainer -1- can be pushed onto multiple connector -3- in only one position.

• Guide pins -4- can be inserted into the retainer in only one position. Contacts -2- must be inserted in the retainer for this purpose.

-- Insert the retainer into the multiple connector until it engages audibly.
