Bench Seat/Single Seat, Removing And Installing: Removing

-- Move the front seats all the way forward.

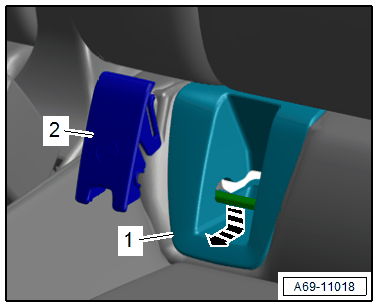

-- Unclip the child seat anchor cover -2- from the anchor and remove.

GWWA69-11018Courtesy of AUDI OF AMERICA, LLC

-- Push the child seat anchor guide -1-, corresponding to opening, downward and disengage it from the anchor in direction of -arrow-.

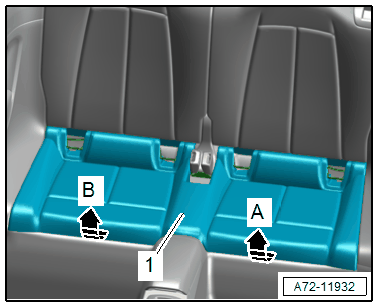

-- With both hands, grasp the bench seat -1- under the seat frame on a side.

GWWA72-11932Courtesy of AUDI OF AMERICA, LLC

-- Pull the bench seat up forcefully with both hands in direction of -arrow A- so the seat frame on the bench seat disengages from the mounting.

-- Repeat the procedure on the other side of the bench seat in direction of -arrow B-.

-- Disengage the bench seat from the backrest frame and remove from the vehicle.
