Lumbar Support Air Cushion, Removing And Installing: Removing
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS FOR PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker pin, for example.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Remove the backrest seat cover and cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, SUPER SPORT SEAT .
-- For reinstallation, mark pneumatic lines at the separating point with a waterproof permanent marker.
-- Disconnect the pneumatic lines -1 and 2- to the air cushion at the following location. Refer to PNEUMATIC LINES, DISCONNECTING AND CONNECTING .
- -a- = 200 mm
- -b- = 50 mm
- -c- = 100 mm
- -d- = 100 mm
- -e- = 200 mm

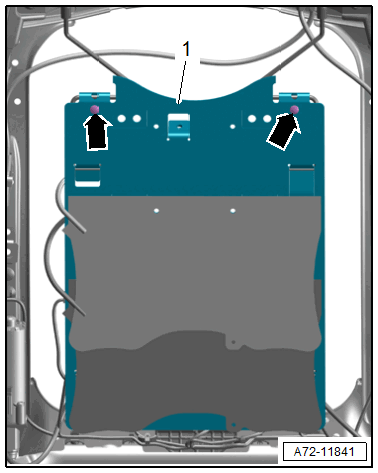

-- Remove the clips -arrows-.
-- Remove the pneumatic line out of the carrier -1- mounting tabs for the air cushion and disengage the spring mat carrier.
