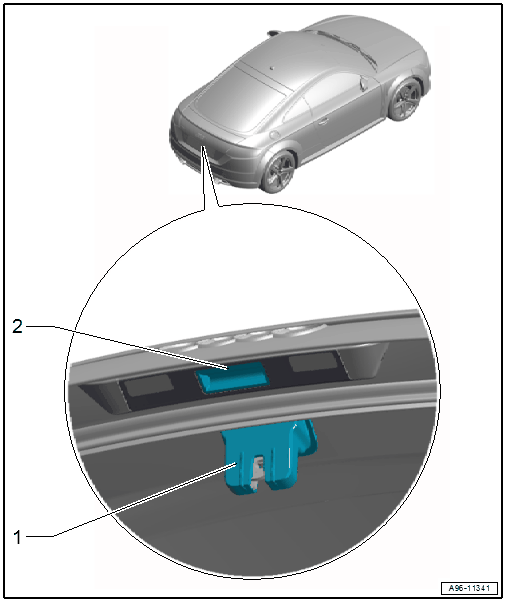

Component Location Overview - Controls In Luggage Compartment

Courtesy of AUDI OF AMERICA, LLC

1. Rear Lid Contact Switch
   • Integrated in the rear lid latch. Cannot be replaced separately if faulty.
   • Rear lid latch, replacing. Refer to LATCH, REMOVING AND INSTALLING .
2. Rear Lid Lock Cylinder Unlock Button -F248-
   • The following components are integrated in the rear lid mechanism:
     • Rear Lid Lock Cylinder Unlock Button -F248-
     • Left License Plate Lamp -X4-
     • Right License Plate Lamp -X5-
   • The components cannot be replaced separately if faulty.
   • Removing and installing. Refer to Rear Lid Lock Cylinder Unlock Button -F248-, REMOVING AND INSTALLING .
