Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING, ROADSTER: Removing

-- Remove the rear panel trim panel. Refer to COMPONENT LOCATION OVERVIEW - VEHICLE INTERIOR TRIM PANELS .

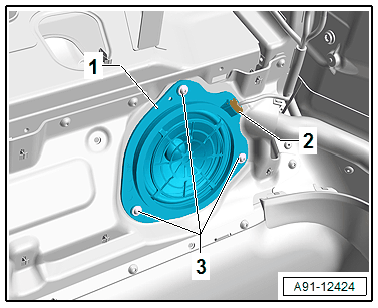

-- Release and disconnect the connector -2- from the Left Rear Bass Speaker -R15- -1-.

GWWA91-12424Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -3- and then remove the Left Rear Bass Speaker -R15- -1- from the rear panel.
