Antenna Amplifier 2 -R111-, REMOVING AND INSTALLING, ROADSTER: Removing

-- Remove the A-pillar trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

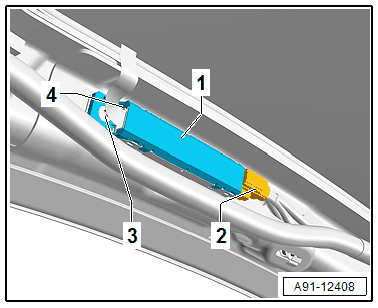

-- Release and disconnect the connectors -2 and 4- from the Antenna Amplifier 2 -R111- -1-.

GWWA91-12408Courtesy of AUDI OF AMERICA, LLC

-- Only loosen the screw -3- (do not remove) and remove the Antenna Amplifier 2 -R111- -1- from the A-pillar.
