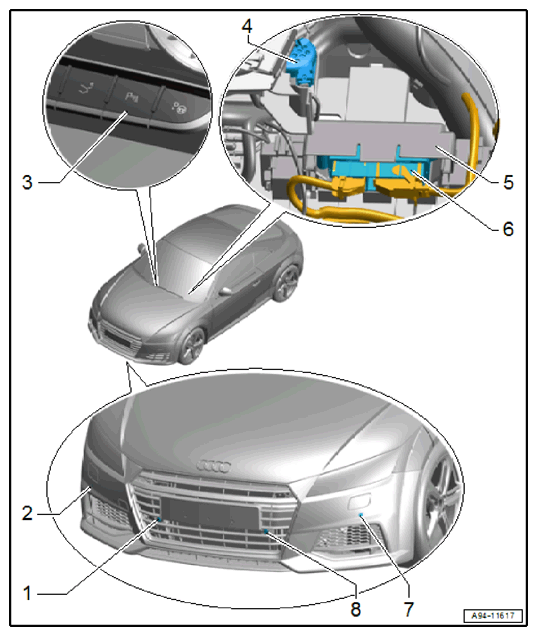

Overview - Front Parking Aid
- Right Front Center Parking Aid Sensor - G253-
- Removing and installing. Refer to Front Parking Aid Sensor, Removing and Installing .
- Right Front Parking Aid Sensor - G252-
- Removing and installing. Refer to Front Parking Aid Sensor, Removing and Installing .
- Parking Aid Button - E266-
- Only for 8-channel parking aid
- Removing and installing. Refer to Buttons in Instrument Panel, Removing and Installing .
- Front Parking Aid Warning Buzzer - H22-
- Only for 8-channel parking aid
- Removing and installing. Refer to Front Parking Aid Warning Buzzer - H22-, Removing and Installing
- Bracket
- Parking Aid Control Module - J446-
- Removing and installing. Refer to Parking Aid Control Module - J446-, Removing and Installing .
- Left Front Parking Aid Sensor - G255-
- Removing and installing. Refer to Front Parking Aid Sensor, Removing and Installing .
- Left Front Center Parking Aid Sensor - G254-
- Removing and installing. Refer to Front Parking Aid Sensor, Removing and Installing .
