Overview - MULTIFUNCTION Steering Wheel, Only "TT RS"

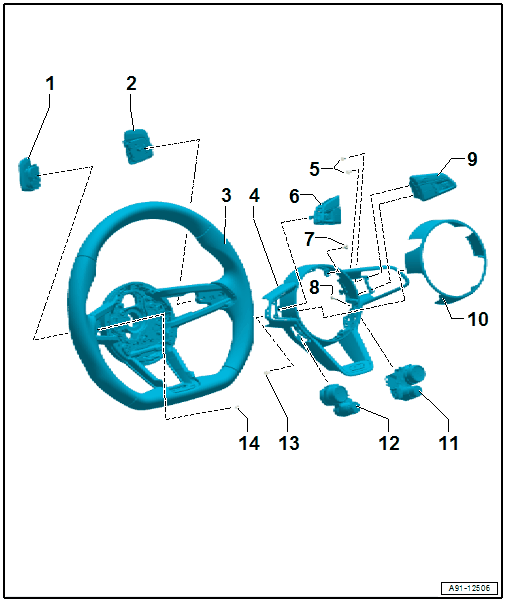

Fig 1: Exploded View Of Multifunction Steering Wheel

Courtesy of AUDI OF AMERICA, LLC

Tiptronic Downshift Button on Steering Wheel -E439-
- Removing and Installing. Refer to Tiptronic Downshift Button On Steering Wheel -E439- /Tiptronic Upshift Button On Steering Wheel -E438-, REMOVING AND INSTALLING .
Tiptronic Upshift Button on Steering Wheel -E438-
- Removing and Installing. Refer to Tiptronic Downshift Button On Steering Wheel -E439- /Tiptronic Upshift Button On Steering Wheel -E438-, REMOVING AND INSTALLING .
Steering Wheel
Guide Ring
Bolt
- 1 Nm
- Multifunction buttons retainer in the steering wheel to guide ring
- Quantity: 2 on each side
Left Multifunction Buttons on Steering Wheel -E440-
- Removing and Installing. Refer to Right Multifunction Buttons On Steering Wheel -E441- /Left Multifunction Buttons On Steering Wheel -E440-, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Guide ring retainer to steering wheel
- Quantity: 4
Bolt
- 0.5 Nm
- Secures the Damping Adjustment Button -E387- /Access/Start Authorization Button -E408- to guide ring
- Quantity: 2 on each side
Right Multifunction Buttons on Steering Wheel -E441-
- Removing and Installing. Refer to Right Multifunction Buttons On Steering Wheel -E441- /Left Multifunction Buttons On Steering Wheel -E440-, REMOVING AND INSTALLING .
Cover Trim
Access/Start Authorization Button -E408- (satellite switch)
- Removing and Installing. Refer to Damping Adjustment Button -E387- / Access/Start Authorization Button -E408- (SATELLITE SWITCH), REMOVING AND INSTALLING .
Damping Adjustment Button -E387- (satellite switch)
- Removing and Installing. Refer to Damping Adjustment Button -E387- / Access/Start Authorization Button -E408- (SATELLITE SWITCH), REMOVING AND INSTALLING .
Bolt
- 1 Nm
- Cover plate retainer to guide ring
- Quantity: 4
Bolt
- 0.5 Nm
- Steering wheel tiptronic switch retainer to steering wheel
- Quantity: 1 on each side
