Overview - MULTIFUNCTION Steering Wheel, Except "TT RS"

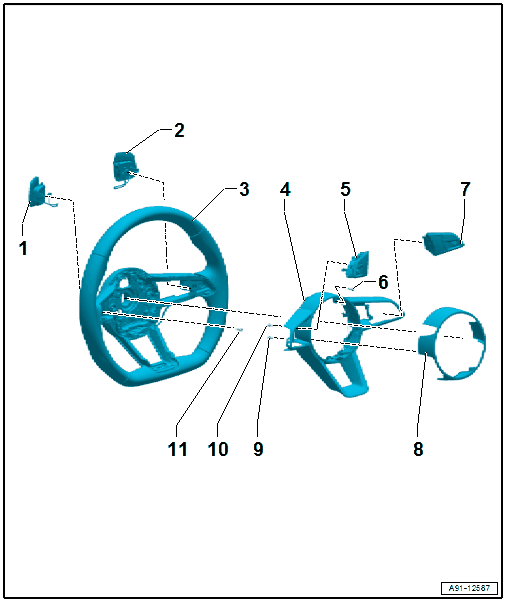

Fig 1: Exploded View Of Multifunction Steering Wheel

Courtesy of AUDI OF AMERICA, LLC

1. Tiptronic Downshift Button on Steering Wheel -E439-
   • Removing and Installing. Refer to Tiptronic Downshift Button On Steering Wheel -E439- /Tiptronic Upshift Button On Steering Wheel -E438-, REMOVING AND INSTALLING .
2. Tiptronic Upshift Button on Steering Wheel -E438-
   • Removing and Installing. Refer to Tiptronic Downshift Button On Steering Wheel -E439- /Tiptronic Upshift Button On Steering Wheel -E438-, REMOVING AND INSTALLING .
3. 3-Spoke Steering Wheel
4. Guide Ring
5. Left Multifunction Buttons on Steering Wheel -E440-
   • Removing and Installing. Refer to Right Multifunction Buttons On Steering Wheel -E441- /Left Multifunction Buttons On Steering Wheel -E440-, REMOVING AND INSTALLING .
6. Bolt
   • 2 Nm
   • Guide ring retainer to steering wheel
   • Quantity: 4
7. Right Multifunction Buttons on Steering Wheel -E441-
   • Removing and Installing. Refer to Right Multifunction Buttons On Steering Wheel -E441- /Left Multifunction Buttons On Steering Wheel -E440-, REMOVING AND INSTALLING .
8. Cover Trim
9. Bolt
   • 1 Nm
   • Cover plate retainer to guide ring
   • Quantity: 4
10. Bolt
    • 1 Nm
    • Multifunction buttons retainer in the steering wheel to guide ring
    • Quantity: 2 on each side
11. Bolt
    • 0.5 Nm
    • Steering wheel tiptronic switch retainer to steering wheel
    • Quantity: 1 on each side
