Satellite Tuner Antenna, Removing And Installing, Roadster: Removing

-- Remove the rear lid trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .

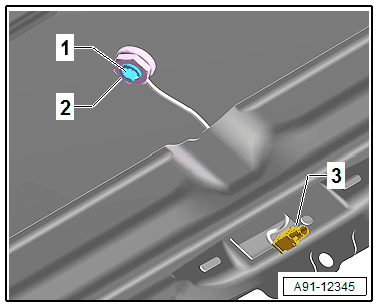

-- Unlock and disconnect the connector for the antenna wire -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -2-.

-- Remove the Satellite Tuner Antenna -R172- -1- upward from the rear lid.
