Roof Antenna -R216-, REMOVING AND INSTALLING: Removing

-- Remove the headliner. Refer to HEADLINER, REMOVING AND INSTALLING .

-- Release and disconnect the connectors from the antenna wires.

Courtesy of AUDI OF AMERICA, LLC

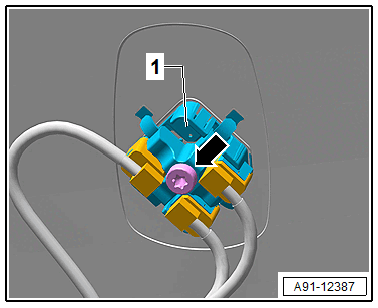

-- Loosen the bolt -arrow-.

-- Remove the Roof Antenna -R216- -1- upward from the roof.
