Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING, COUPE: Removing

-- Remove the side trim panel. Refer to OVERVIEW - SIDE TRIM PANEL .

The Left Rear Treble Speaker -R14- -1- is clipped into the bracket -2-. It must be removed first.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connectors from the speakers.

Courtesy of AUDI OF AMERICA, LLC

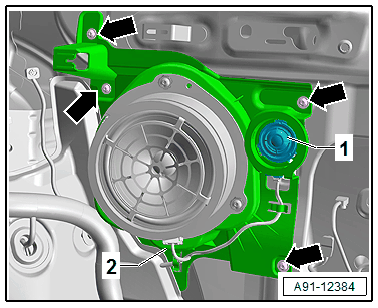

-- Remove the bolts -arrows- and remove the bracket with the speakers from the side trim panel.

Courtesy of AUDI OF AMERICA, LLC

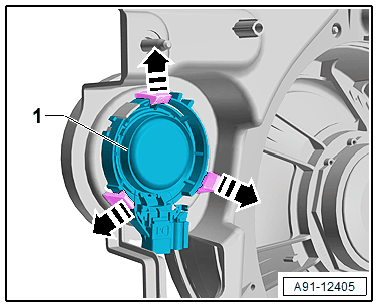

-- Push the tabs in direction of -arrows- outward and remove the Right Front Microphone -R14- -1- from the bracket.
