Overview - Bulkhead

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

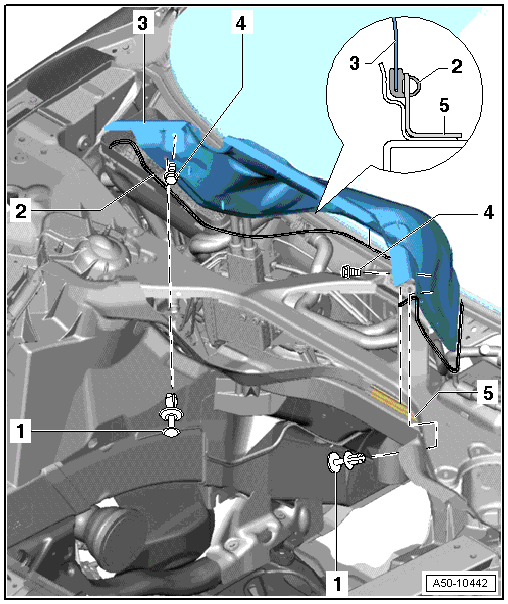

Fig 1: Identifying Bulkhead Overview

Courtesy of AUDI OF AMERICA, LLC

Expanding Clip
- Remove the expanding clip.
Seal
- Install the seal from underneath.
Plenum Chamber Bulkhead
NOTE:
It may be necessary to open a connector depending on the engine installed
- Before removing
  -- Removed plenum chamber cover.

  -- Remove the tower brace, refer to Suspension Strut And Upper Control Arm .
- First remove the expanding clip and then remove the bolts.
- Installing.
  -- First secure the plenum chamber bulkhead with the expanding clips, then install the tower brace and tighten the bolts to the tightening specification.
Bolt
- Tightening specification, refer to Suspension Strut And Upper Control Arm .
Plenum Chamber
