Lock Carrier Cover, Removing And Installing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

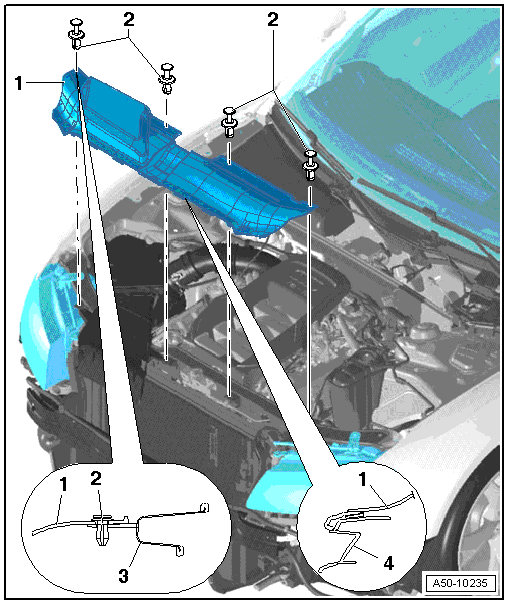

- Cover
- For removal, remove the locking pin and release the expanding clip.
- Remove the expanding clip from the cover.
- Remove the cover back from the radiator grille.
- When installing, the tabs on the cover must engage on the radiator grille and on the sides of the bumper cover.
- Insert the expanding clip through the cover into the lock carrier and press the locking pin in.
- Expanding Clip
- Remove the clamping pin when removing.
- Only press the clamping pin in when installing.
- Quantity: 4
- Lock Carrier
- Radiator Grille
