Hydraulic Control Unit: Installing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2016 Audi S5, 2015 Audi S5, 2015 Audi RS 5, and 2014 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Always follow the safety precautions when replacing the hydraulic control unit. Install the "old" sensors again if possible. Refer to the appropriate service information.

Conditions:

Replace the seal between the hydraulic control unit -1- and the final drive housing.

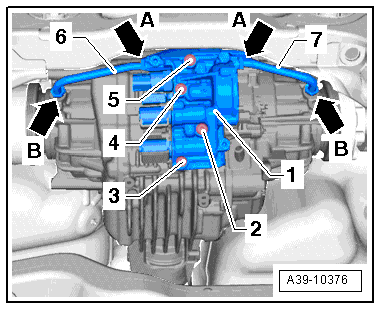

Fig 1: Identifying Hydraulic Control Unit
Courtesy of AUDI OF AMERICA, LLC
The centering pins, refer to item 18 must be installed inside the hydraulic control unit.
The left -6- and right -7- pipes must installed loosely inside the control unit when attaching the hydraulic control unit -1- to the rear final drive.

Attach The Hydraulic Control Unit -1- To The Rear Final Drive As Follows:

First install the pipes -6 and 7- into the chambers hand-tight -arrows B-.

Install the bolts -2 through 5- hand-tight. The bolt -2- has permanent seal on the bolt head. Coat the thread on this bolt with sealing compound D 176 501 A1.

Then tighten the bolts -2 through 5- to the tightening specification in the following sequence: -4-, -2-, -5- and -3- (M8 x 30 mm).

Tighten the nuts -arrows A- and -arrows B- on the left -6- and right -7- pipes to the tightening specification.

-- Install the AWD pump. Refer to PUMP .

-- Install the wiring harness -3- on the final drive and subframe -5 through 7-.

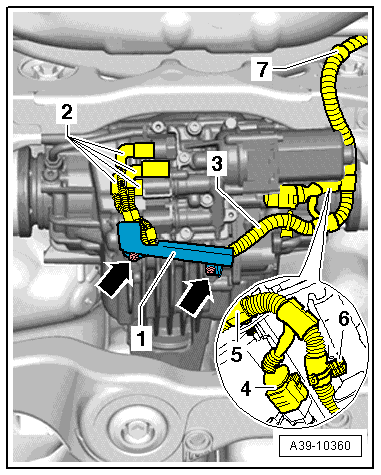

Fig 2: Identifying Rear Final Drive Wiring Harness Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Connect the connectors -4 and 2- using the markings made earlier when oil pressure/temperature sensor -- and the clutch valve -- were removed.

-- If equipped, hold the wiring harness bracket -1- on the rear final drive and then tighten the bolts -arrows- to the tightening specification. Be careful not to pinch the wiring harness -3-.

NOTE:

Connector allocation for the oil pressure/temperature sensor -- and the clutch valves -- :

Fig 3: Oil Pressure/Temperature Sensor Connector

Courtesy of AUDI OF AMERICA, LLC

-1- = oil pressure/temperature sensor 2 -G640- connector

-2- = oil pressure/temperature sensor -G437- connector

-3- = AWD clutch valve 2 -N446- connector

-4- = AWD clutch valve -N445- connector

-- Fill the gear oil in the rear final drive and check the level. Refer to GEAR OIL LEVEL IN REAR FINAL DRIVE 0BF AND 0BE, CHECKING .

-- Fill the ATF in the rear final drive and check the level. Refer to ATF LEVEL IN REAR FINAL DRIVE 0BF AND 0BE, CHECKING .

-- Install and adjust rear section of exhaust system free of stress. Refer to the appropriate service information .
