Right Timing Chain Cover, Removing And Installing: Installing

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, 2009 Audi S5, and 2008 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Tightening Specifications. Refer to Figure.

NOTE:

Replace The O-Rings.

-- Remove old sealant form the grooves in the timing chain cover as well as from the sealing surfaces.

CAUTION:

Risk Of Contaminating The Lubricating System.

Cover open parts of engine.

WARNING:

Danger Of Eye Injury.

Wear protective eyewear.

-- Remove Any Remaining Sealant On The Timing Chain Cover And Cylinder Head Using, For Example, A Rotating Plastic Brush.

Fig 1: Cleaning Remaining Sealant With Rotating Plastic Brush

Courtesy of AUDI OF AMERICA, LLC

-- Clean the sealing surfaces. They must be free of oil and grease.

NOTE:

Note The Expiration Date Of The Sealing Compound.

-- Cut the tube nozzle at the front marking (nozzle diameter: about 2 mm).

Fig 2: Cut Tube Nozzle At Front Marking

Courtesy of AUDI OF AMERICA, LLC

-- Drive the right coolant intermediate pipe -2- out of the right timing chain cover with a drift.

Fig 3: Driving Left Coolant Intermediate Pipe Out Of Left Timing Chain Cover With Suitable Drift

Courtesy of AUDI OF AMERICA, LLC

-- Insert O-rings -1- on the coolant intermediate pipe -2-.

-- Insert the coolant intermediate pipe into the right timing chain cover.

CAUTION:

The Lubrication System Could Be Plugged With Excess Sealant.

Do not apply sealant bead thicker than indicated.

-- Apply a sealant bead -arrow- to the clean sealing surfaces of the right timing chain cover as shown in the illustration.

Thickness of sealant bead: 2.5 mm.

NOTE:

The Timing Chain Cover Must Be Installed Within 5 Minutes After Applying The Sealant

-- Install the right timing chain cover with the bracket -arrow- and tighten the bolts. Refer to Figure.

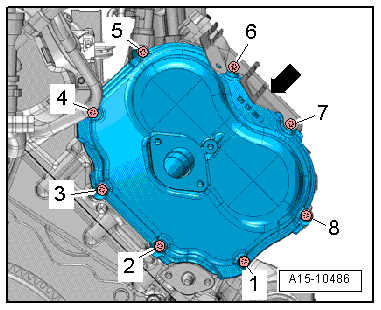

Fig 4: Identifying Right Timing Chain Cover Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note The Following:

-- Install the right AIR combination valve. Refer to RIGHT COMBINATION VALVE, REMOVING AND INSTALLING, WITHOUT VACUUM CONTROL .

-- Installing the coolant connecting pieces. Refer to COOLANT CONNECTIONS, REMOVING AND INSTALLING .

-- Install right coolant pipe. Refer to RIGHT COOLANT PIPE, REMOVING AND INSTALLING .

-- Install the right catalytic converter: Vehicles with manual transmission. Refer to RIGHT CATALYTIC CONVERTER, REMOVING AND INSTALLING, MANUAL TRANSMISSION , vehicles with automatic transmission. Refer to RIGHT CATALYTIC CONVERTER, WITH AUTOMATIC TRANSMISSION, REMOVING AND INSTALLING .

-- Install the right front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING .

-- Install the Heated Oxygen Sensor -G39-. Refer to HEATED OXYGEN SENSOR -G39- /OXYGEN SENSOR AFTER THREE WAY CATALYTIC CONVERTER -G130-, REMOVING AND INSTALLING, CYLINDER BANK 1 .

-- Install the plenum chamber bulkhead. Refer to LOCK CARRIER .

-- Install the tower brace. Refer to TOWER BRACE, REMOVING AND INSTALLING .

-- Install the vacuum pump. Refer to VACUUM PUMP .
