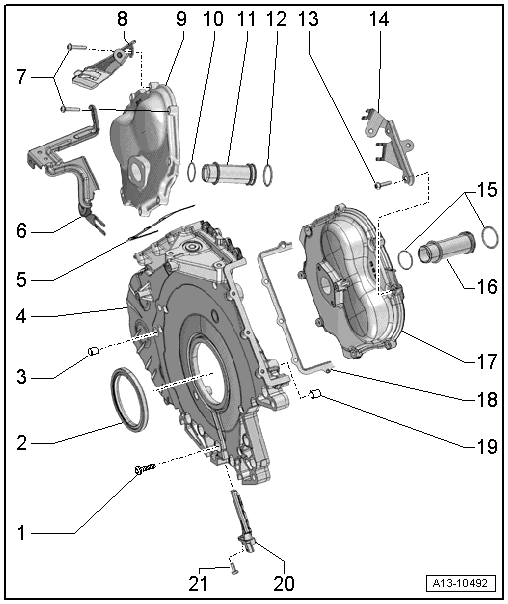

Overview - Timing Chain Cover: Notes
WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, 2009 Audi S5, and 2008 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Tightening Specification and sequence. Refer to Figure.
- Crankshaft Shaft Seal, Transmission Side
- Replacing. Refer to CRANKSHAFT SEAL, REPLACING, TRANSMISSION SIDE .
- Alignment Sleeve
- Quantity: 2
- Lower Timing Chain Cover
- Removing and installing. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .
- Left Cylinder Head Gasket
- Bracket
- For the electrical wiring harness
- Bolts
- Tightening Specification and sequence. Refer to Figure.
- Bracket
- For the left oxygen sensors electrical connectors
- Left Timing Chain Cover
- Removing and installing. Refer to LEFT TIMING CHAIN COVER, REMOVING AND INSTALLING .
- O-ring
- Always replace
- Left Coolant Intermediate Pipe
- Remove using a drift
- O-ring
- Always replace
- Bolt
- Tightening Specification and sequence. Refer to Figure.
- Bracket
- For the right oxygen sensors electrical connectors
- O-rings
- Always replace
- Right Coolant Intermediate Pipe
- Remove using a drift
- Right Timing Chain Cover
Removing and installing. Refer to RIGHT TIMING CHAIN COVER, REMOVING AND INSTALLING .
- Right Cylinder Head Gasket
- Alignment Sleeve
- Quantity: 2
- Engine Speed Sensor -G28-
- Removing and installing. Refer to ENGINE SPEED SENSOR -G28-, REMOVING AND INSTALLING .
- Bolt
- Tightening Specification. Refer to OVERVIEW - IGNITION SYSTEM .
