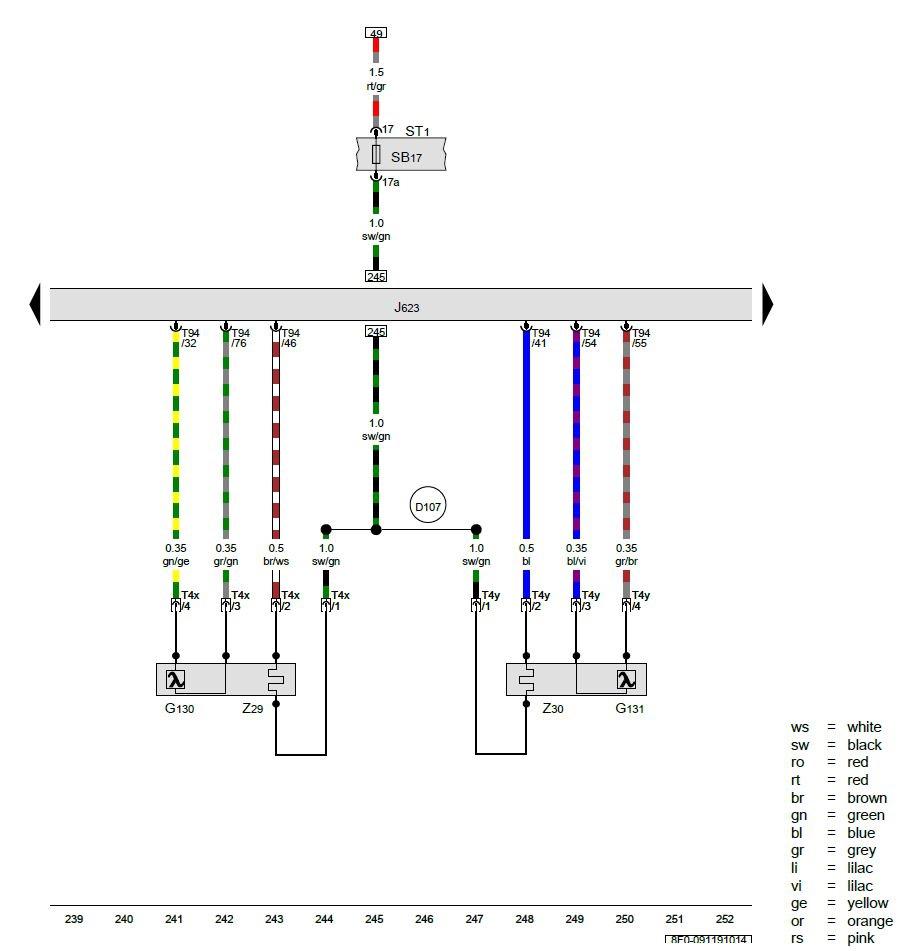

Oxygen Sensor After Three Way Catalytic Converter, Oxygen Sensor 2 After Catalytic Converter: Notes

GWW8F0-091191014

Courtesy of AUDI OF AMERICA, LLC
