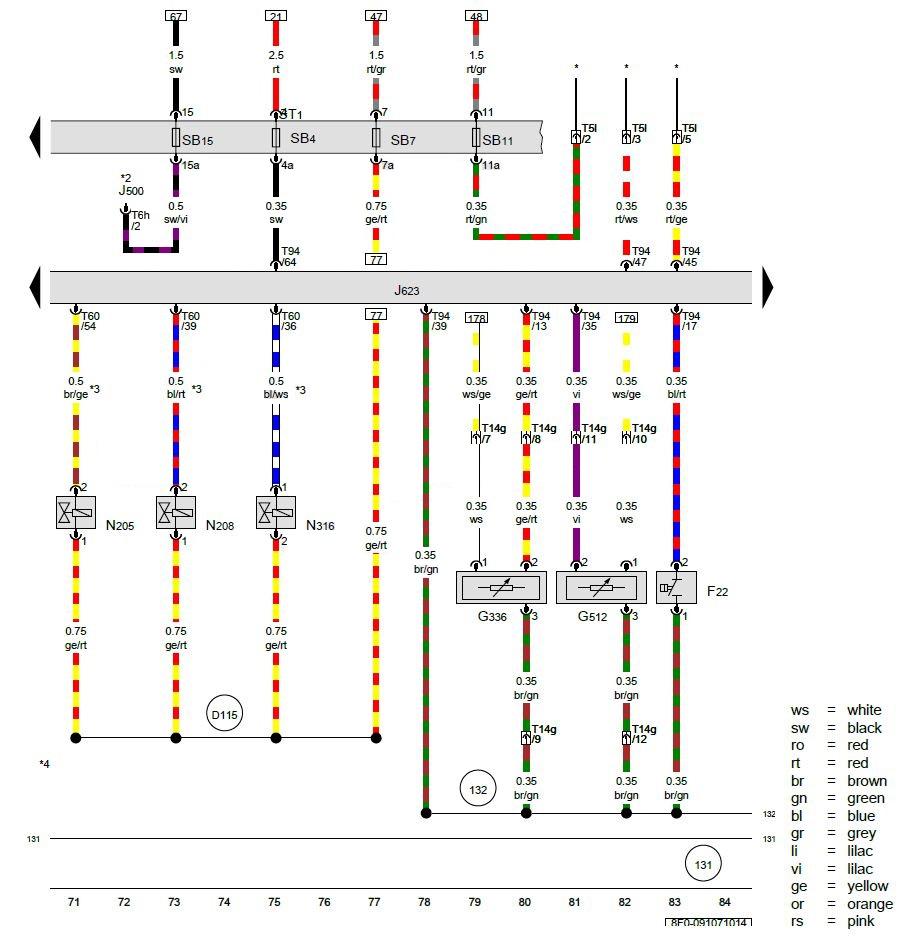

Oil Pressure Switch, Intake Manifold Runner Position Sensor, Intake Manifold Runner Position Sensor 2, Camshaft Adjustment Valve 1, Camshaft Adjustment Valve 2: Notes

GWW8F0-091071014Courtesy of AUDI OF AMERICA, LLC
