Overview - Luggage Compartment Controls

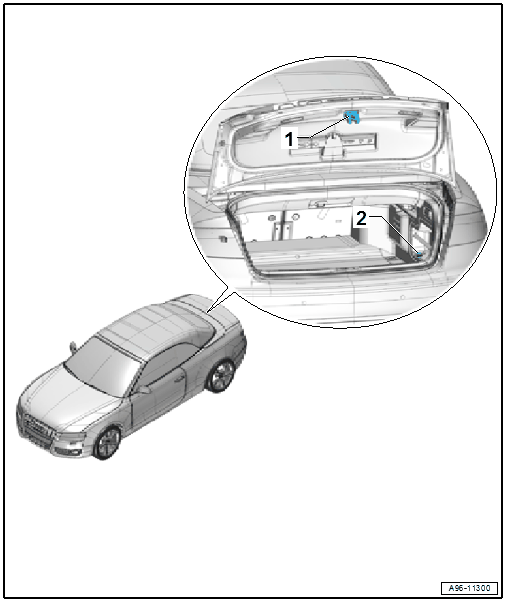

Fig 1: Locating Luggage Compartment Controls
GWWA96-11300Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Rear Lid Contact Switch
  2. 12 V Socket 3 -U19-
